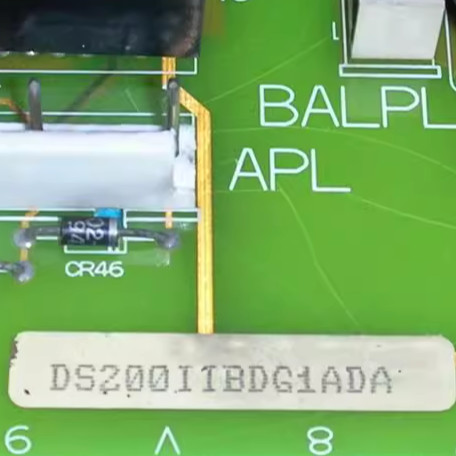

Product: General Electric DS200IIBDG1ADA IGBT Gate Driver Board DS200 Series Gas Turbine Card in stock now

Description

GE DS200IIBDG1ADA has three major functions in terms of the greater overall drive assembly, including current feedback isolation, isolating motor terminal voltage, and protecting the assembly's gate drive for power insulated gate bipolar transistors or IGBTs. This product exists as a member of GE Industrial Systems' Mark V series of automated drive component parts. Please note that while any information provided here may not be completely accurate, as the dimensions of this PCB component part may be influenced by its three revisions.

The SPEEDTRONIC™ Mark V gas turbine control system is specifically designed for GE gas and steam turbines, and uses a considerable number of CMOS and VLSI chips selected to minimize power dissipation and maximize functionality. The new design dissipates less power than previous generations for equivalent panels. Ambient air at the panel inlet vents should be between 32 F and 72 F (0 C and 40 C) with a humidity between 5 and 95%, non-condensing. The standard panel is a NEMA 1A panel that is 90 inches high, 54 inches wide, 20 inches deep, and weighs approximately 1,200 pounds. Figure 11 shows the panel with doors closed.

For gas turbines, the standard panel runs on 125 volt DC unit battery power, with AC auxiliary input at 120 volt, 50/60 Hz, used for the ignition transformer and the processor. The typical standard panel will require 900 watts of DC and 300 watts of auxiliar y AC power. Alternatively, the auxiliary power can be 240 volt AC 50 Hz, or it can be supplied from an optional black start inverter from the battery.
