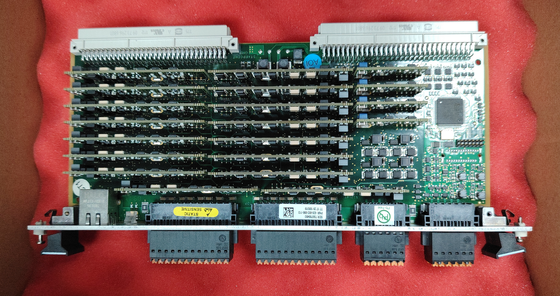

XIO16T 620-002-000-113

  • XIO16T 620-002-000-113
  • XIO16T 620-002-000-113
  • XIO16T 620-002-000-113
  • XIO16T 620-002-000-113
Tempat asal Cina
Nama merek Other
Sertifikasi Certificate of Origin
Nomor model XIO16T 620-002-000-113
Kuantitas min Order 1 buah
Harga $2000
Kemasan rincian 2400-3000bph
Waktu pengiriman 3-5 hari
Syarat-syarat pembayaran T/T
Menyediakan kemampuan Cina
Detail produk
Nomor Modul XIO16T Nomor Pemesanan Nomor telepon 620-002-000-113
Kondisi dalam stok Berat 1KG
Waktu Pimpin 3-5 hari kerja Merek Lainnya
Asal Cina Harga Jual $ 2000
Warrenty 1 Tahun
Tinggalkan pesan
Deskripsi Produk
XIO16T 620-002-000-113
Product Overview
XIO16T 620-002-000-113 is a high-performance expansion input/output module that serves as the core interface component of a rack-mounted mechanical monitoring system. Acting as the system's signal hub, it receives signals from various field sensors—including vibration velocity, acceleration, displacement, and key-phase pulses—and converts them into digital signals for processing.
Key Features
  • Number of dynamic channels: 16 channels
  • Number of tachometer channels: 4 channels (configurable as DC inputs)
  • RPM Measurement Range: 1 to 100,000 rpm
  • RPM Measurement Resolution: 5 ns
  • Input Voltage Range: 0.8 to 500 V peak-to-peak (0.3 Hz to 10 kHz)
  • DC Component Range: -20 to +20 V
  • Maximum Common-Mode Voltage: ±50 V
  • Processing Outputs per Channel: Up to 20
  • Operating Temperature: 0 to 65°C (32 to 149°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
Technical Specifications
Brand Name Other
Model XIO16T
Ordering Information 620-002-000-113
Catalog Extended Vibration Monitoring Card
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16 cm x 12 cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $2000
Warranty 12 months
Courier Partners DHL, UPS, TNT, FedEx and EMS
Detailed Description
Used in conjunction with the XMV16 or XMC16 processing modules, this module handles sensor signal acquisition, analog signal conditioning, and external communication functions. Featuring a modular rack-mount design, it is installed at the rear of the rack, directly opposite the front-end processing modules. The XIO16T provides the system with a wide range of I/O interfaces and ensures the integrity and accuracy of monitoring data through its high-precision 24-bit data acquisition capability and high signal-to-noise ratio (SNR) processing.
XIO16T module installation and configuration diagram
Compatible Models
  • XMV16 600-003: Vibration Monitoring Applications
  • XMC16 601-052: Combustion monitoring applications
  • XMV516 601-054: Vibration Monitoring
  • ABE04x: standard rack
  • ABE056: Ultra-thin Rack
Routine Maintenance Procedures
Procedure Description
LED Indicator Check Periodically check the status of the module's LED indicators to confirm normal operation. The XMx16 module's front panel features STATUS, DATA, and ETHERNET ACT and LINK indicators; the XIO16T module features STATUS and ETHERNET indicators.
Cable Connection Inspection Periodically inspect cable connections to prevent loosening or damage caused by vibration.
Self-Diagnostic Function The module features a self-diagnostic function that can quickly pinpoint faults. If an anomaly is detected, perform a diagnostic check using the VibroSight® software first.
Case Study
A large European power plant, which frequently faced unplanned gas turbine shutdowns due to delays in bearing wear detection, chose to upgrade its condition monitoring system. After installing the XIO16T 620-002-000-113, the system began collecting vibration data from 12 sensors on the gas turbine with an accuracy of 0.1% and a data transmission latency of ≤50 ms. This enabled early fault warning and significantly reduced unplanned outages.
Power plant gas turbine monitoring system installation
Frequently Asked Questions
Can the XIO16T module operate independently?
No. The XIO16T is an interface module and must be paired with an XMV16 or XMC16 processing module; when installed at the rear of the rack, they form a complete "card pair."
Does the XIO16T support hot-swapping?
Yes. The module supports hot-swapping and removal while powered on, allowing for replacement while the system is running. However, for safety reasons, we still recommend disconnecting the power before performing these operations unless absolutely necessary.
What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
XIO16T module technical specifications and compatibility details
